Friday, February 10, 2012

JavaFX 2.0: HBox and VBox

The HBox layout pane arranging a series of nodes in a single row horizontally.
The VBox layout pane arranging a series of nodes in a single column vertically.

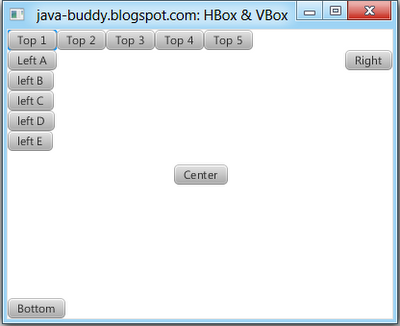

Example:
JavaFX 2.0: HBox and VBox
package javafx_layoutpanes;

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.HBox;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

/**
*
* @web http://java-buddy.blogspot.com/
*/
public class JavaFX_LayoutPanes extends Application {

/**
* @param args the command line arguments
*/
public static void main(String[] args) {
launch(args);
}

@Override
public void start(Stage primaryStage) {
primaryStage.setTitle("java-buddy.blogspot.com: HBox & VBox");
Group root = new Group();

double width = 400;
double height = 300;

Scene scene = new Scene(root, width, height, Color.WHITE);

BorderPane borderPane = new BorderPane();
borderPane.setPrefSize(width, height);

HBox hbox = new HBox();
hbox.getChildren().addAll(
new Button("Top 1"),
new Button("Top 2"),
new Button("Top 3"),
new Button("Top 4"),
new Button("Top 5"));

VBox vbox = new VBox();
vbox.getChildren().addAll(
new Button("Left A"),
new Button("left B"),
new Button("left C"),
new Button("left D"),
new Button("left E"));

borderPane.setTop(hbox);
borderPane.setBottom(new Button("Bottom"));
borderPane.setCenter(new Button("Center"));
borderPane.setLeft(vbox);
borderPane.setRight(new Button("Right"));

root.getChildren().add(borderPane);
primaryStage.setScene(scene);
primaryStage.show();
}
}
